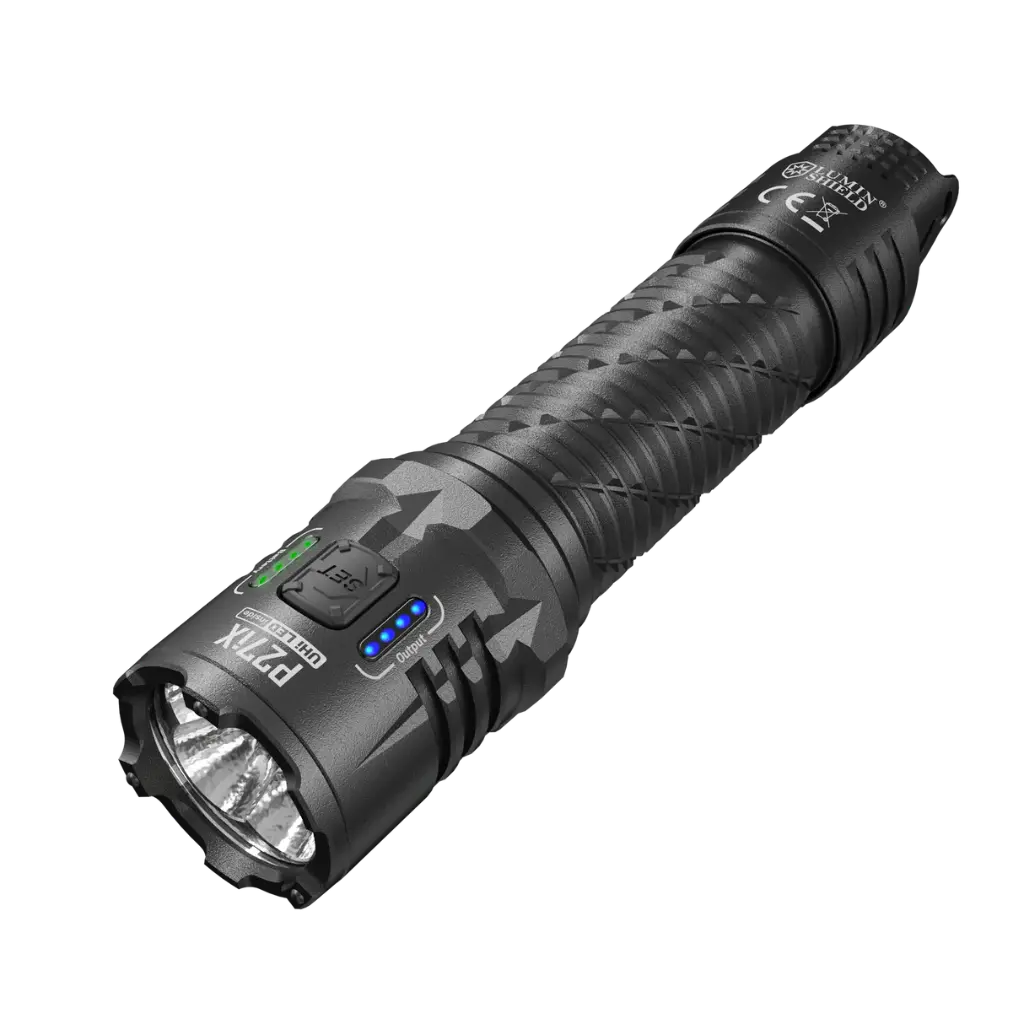

PRODUCT SPEC
LED 4 x NiteLab M515S LED
Reflector OP
Max Output 5000 Lumens
Beam Color White Light
Max Beam Distance 430 Meters
Max Beam Intensity 46,320cd
Battery 1 x NITECORE 21700 i Series Battery
Max Runtime 100h
Length 143mm (5.63")
Head Size 32mm (1.26")
Weight 124g (4.37 oz) (Battery and Accessories Not Included)
TECHNICAL DATA
Using a 21700 i Series Li-ion Battery:
FL1 STANDARD | LUMIN SHIELD® | SEARCH | Floodlight | Mixed Light | Spotlight | WARNING FLASH | STROBE | |||||||||
TURBO | HIGH | MID | LOW | TURBO | HIGH | MID | LOW | TURBO | HIGH | MID | LOW | |||||
| *5,000 Lumens | *2,500 Lumens | 1,500 Lumens | 400 Lumens | 80 Lumens | 15 Lumens | 1,500 Lumens | 400 Lumens | 80 Lumens | 15 Lumens | 1,500 Lumens | 400 Lumens | 80 Lumens | 15 Lumens | 1,000 Lumens | *5,000 Lumens |
| — | — | 2h 30min | 6h | 25h | 100h | 2h 30min | 6h | 25h | 100h | 2h 30min | 6h | 25h | 100h | — | — |
| 300m | 430m | 180m | 85m | 33m | 14m | 251m | 114m | 49m | 20m | 302m | 163m | 64m | 31m | — | — |
| 22,500cd | 46,320cd | 8,100cd | 1,806cd | 272cd | 49cd | 15,750cd | 3,249cd | 600cd | 100cd | 22,800cd | 6,642cd | 1,024cd | 240cd | — | — |
| 2m | |||||||||||||||
| IP68 (2 Meters Submersible) |
Note:
1.The stated data is measured by using a 21700 i Series rechargeable Li-ion battery (5,500mAh), in accordance with the international flashlight testing standards ANSI/PLATO FL 1-2019, at an ambient temperature of 26°C (79°F) from the NITECORE Lab. The data may vary in real world use due to different battery usage or environmental conditions.
2.When LUMIN SHIELD® / STROBE / SEARCH is activated, the flashlight will automatically adjust the brightness to prevent overheating and prolong the lifespan of the flashlight. To restore the previous brightness, simply reactivate LUMIN SHIELD®/ STROBE / SEARCH.
* The max outputs of LUMIN SHIELD®, SEARCH, and STROBE are only accessible when using NITECORE 21700 i Series batteries with an output over 15A.
* The data is tested without the temperature regulation.
FEATURES
- Utilizes 4 five-core M515S LEDs with a max output of 5,000 lumens
- Peak beam intensity of 46,320cd and max throw of 430 meters
- Offers 4 brightness levels, LUMIN SHIELD®, STROBE READY™, SEARCH and WARNING FLASH
- Supports button customization for quick access to special modes and brightness levels
- Two grip options available: the Duty Grip is designed for everyday use and is primarily operated via the SET Button, while the Tactical Grip is intended for tactical applications and is mainly controlled by the Tail Button and Engage Button.
- Includes a NITECORE NL2155HPi 21700 Li-ion battery (5,500mAh) and is compatible with CR123/RCR123 batteries
- A micro-textured orange peel reflector offers long range and wide angle lighting
- Highly efficient constant current circuit provides a stable output for up to 100 hours
- Level indicators and battery indicators available for indicating the current brightness level and remaining battery power
- Designed with dual tail buttons and a side SET button
- Intelligent Li-ion battery charging circuit with a USB-C charging port, supporting QC/PD fast charging up to 18W
- Lockout switch (Rapid Lock™) available (Patent No. CN202322748377.2; US Patent No. US12203638B1; EU Patent No. EP4459174A1)
- Features a high-strength stainless steel strike bezel with silicon nitride ceramic tips, capable of breaking glass quickly
- Incorporated Advanced Temperature Regulation (ATR) module (Patent No. ZL201510534543.6)
- Constructed from 7075-T6 aero grade aluminum alloy with HA III military grade hard-anodized finish
- Waterproof and dustproof rating in accordance with IP68 (2 meters submersible)
- Impact resistant to 2 meters
FAQ
Q: What LEDs are used in the NITECORE P27iX?
A: The NITECORE P27iX utilizes 4 x M515S LEDs, a next-generation professional mobile lighting solution, featuring a groundbreaking X-shaped array packaging architecture. The M515S LED delivers higher overall luminous efficiency and more uniform beam with smoother, more flexible beam pattern control.
Q: What is the maximum brightness of the NITECORE P27iX? Is the NITECORE P27iX a high-output flashlight?
A: Yes, the NITECORE P27iX is a high-output flashlight with a maximum brightness of 5,000 lumens. By activating NITECORE's exclusive LUMIN SHIELD® function, the NITECORE P27iX provides 5,000 lumens of broad floodlight for visual deterrence and defense.
Q: What is the maximum beam distance of the NITECORE P27iX? Is the NITECORE P27iX suitable for long-range use?
A: Yes, the NITECORE P27iX is suitable for long-range use. The NITECORE P27iX offers a maximum beam distance of 430 meters with a peak beam intensity of 46,320cd at the SEARCH mode. The NITECORE P27iX is ideal for long-range applications such as observation, searching, and rescue operations.
Q: Why does the brightness of the NITECORE P27iX decrease after prolonged use?
A: The NITECORE P27iX features an Advanced Temperature Regulation (ATR) module. During extended high-output operation, the NITECORE P27iX will automatically regulate the output according to the working condition and ambient environment to prevent overheating damage, maintain optimal performance, and ensure user safety.
Q: How many beam patterns does the NITECORE P27iX offer, and what are they used for?
A: The NITECORE P27iX offers three beam patterns: long-throw light, floodlight, and mixed light. LOW/MID/HIGH/TURBO levels allow beam pattern customization. The long-throw light is ideal for long-distance searches in open areas and rescue scenarios. The floodlight with a 115° lighting angle, is suitable for close-range lighting in confined indoor spaces, reducing harsh wall glare and improving search efficiency. The mixed light meets every operational needs from wide-area searches in open spaces to close-quarters applications.
Q: Does the NITECORE P27iX include a battery? What should I do if the battery runs out?
A: The NITECORE P27iX comes with a NITECORE NL2155HPi 5,500mAh rechargeable Li-ion battery. When power is low, the NITECORE P27iX can be recharged directly via its USB-C port, eliminating the need for an external charger. The NITECORE P27iX is also compatible with 2 x CR123 batteries when used with the included battery magazine, allowing quick replacement in emergency situations for enhanced convenience.
Q: What is the maximum runtime of the NITECORE P27iX? Is the NITECORE P27iX suitable for long-term use?
A: Yes, the NITECORE P27iX is suitable for long-term use. The NITECORE P27iX provides up to 100 hours of runtime at the 15-lumen LOW level, making it suitable for extended use such as night patrols, inspections, and search and rescue.
Q: Can the NITECORE P27iX prevent accidental activation?
A: Yes, the NITECORE P27iX can prevent accidental activation by sliding the signature NITECORE Rapid Lock™ switch to enter the lockout mode, effectively preventing accidental activation when stored in a bag or pocket for safe carrying.
Q: What is the IP rating and durability of the NITECORE P27iX?
A: The NITECORE P27iX is rated IP68, providing excellent protection against dust and water, and is impact resistant up to 2 meters. Featuring a CNC-machined body craft from a solid block of 7075-T6 aluminum alloy, the NITECORE P27iX is greatly enhanced in hardness, tensile strength and yield strength, offering exceptional resistance to scratches, wear, and impacts for reliable performance in demanding environments.
Q: What applications is the NITECORE P27iX suitable for?
A: The NITECORE P27iX is designed for a wide range of tactical applications, including military and law enforcement, search and rescue, close-quarters engagement, security patrol, and night duty. As a customizable variable beam pattern tactical flashlight with 5,000-lumen LUMIN SHIELD®, 430-meter long throw, tactical/duty grip, the NITECORE P27iX provides reliable illumination for both long-range search and wide-area lighting.
Q: Why should law enforcement and security professionals choose the NITECORE P27iX?
A: The NITECORE P27iX is an all-in-one tactical flashlight, refined through extensive real-world feedback and continuous optimization. Every detail is engineered to match user habits and operational demands. From grip to beam pattern, LUMIN SHIELD®, STROBE, SEARCH and brightness configurations, every function of the NITECORE P27iX is fully customizable for stable one-handed control. Whether for tactical suppression, close-quarters engagement, or patrol duty, the NITECORE P27iX delivers professional-grade reliability across all scenarios.
Q: What are the main upgrades of the NITECORE P27iX compared to the previous NITECORE P20iX?
A: Compared to the previous NITECORE P20iX, the NITECORE P27iX features the M515S Array LEDs and supports free switching between three beam patterns: long-throw light, floodlight, and mixed light. The NITECORE P27iX delivers up to 5,000 lumens with a maximum beam distance of 430 meters and supports both tactical and duty grip options. The tail buttons of the NITECORE P27iX are upgraded with an all-new tactical anti-grab design, helping prevent drops or grabbing during high-intensity operations, thereby enhancing stability and safety. Overall, the NITECORE P27iX offers a higher-performance tactical lighting solution with an improved user experience.
PACKAGE LIST
- NITECORE NL2155HPi 21700 Rechargeable Li-ion Battery (5,500mAh)
- NTH27 Tactical Holster
- Clip
- Spare O-ring
- CR123 Battery Magazine
- Lanyard Charging Cable
